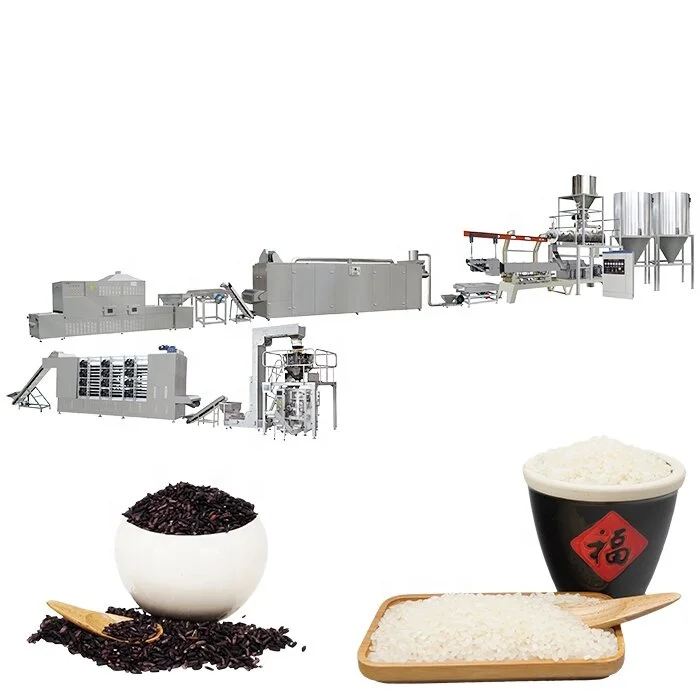

200kg/h Fortified rice extrusion machine artificial rice making machine rice fortified machine
Product Description
200kg/h Fortified rice extrusion machine artificial rice making machine rice fortified machine is composed of the following machines
1. Powder mixing machine: Mix various raw materials according to the requirements of a predetermined ratio.
2. Feeder: convey the mixed raw materials to the hopper of the extruder. reduce labor intensity and improve work efficiency.
3. Twin-screw extrusion granulator: The raw materials in the hopper are continuously
conveyed into the screw at a certain operating speed. The raw materials are fully extruded and softened by the screw in the extruder. and finally extruded in the abrasive tool to form Uniform rice grains.
conveyed into the screw at a certain operating speed. The raw materials are fully extruded and softened by the screw in the extruder. and finally extruded in the abrasive tool to form Uniform rice grains.
4. Vibrating screen: The rice particles under high temperature are evenly spread on the cooling surface of the vibrating screen. and move forward at a uniform speed under the shaking of the vibrating motor. Equipped with fan cooling to prevent the occurrence of rice sticking.
5. Air conveyor: convey the rice to the drying box. Connecting devices between devices
6. Drying box: the rice is dried and dehydrated to meet the requirements of use. The drying box mostly uses electric heating and gas type.
7. Lifting machine: the connection between the equipment. lifting the nutritional rice into the drum machine
8. Drum: the dried rice is cooled and simply polished. (Air conveyor): The nutritious rice is air sent into the rice storage tank to store the nutritious rice. (Storage tank): Temporary storage of nutritional rice. (Packaging machine): Packing nutritious rice.
Mixing Machine
Function: This machine is used to mix the raw material with water and other additives evenly. Technical Parameter: Power: 15kw
Capacity: 130kg-150kg/batch Dimension: 1450x1550x980mm Machine Weight: about 200kg Mixing tank thickness: 1.5mm Stainless steel
cover thickness: 1.2mm Quantity: 1pc
Capacity: 130kg-150kg/batch Dimension: 1450x1550x980mm Machine Weight: about 200kg Mixing tank thickness: 1.5mm Stainless steel
cover thickness: 1.2mm Quantity: 1pc
Double Screw Extruder Machine
Function：Double Screw Extruder serves to gelatinize flours andstarches continuously and automatically. After dosing. the materials
one set(artificial rice) feeder power:1.5kw.frequency control extruding power:110kw .frequency control cutting
power:2.2kw.frequency control Screw length:2500MM oil pump power:0.75kw
one set(artificial rice) feeder power:1.5kw.frequency control extruding power:110kw .frequency control cutting
power:2.2kw.frequency control Screw length:2500MM oil pump power:0.75kw
Vibrating Screen
Function: This machine is used to
cool the food during vibration in
order to avoid the food stick with each other. Technical
Parameter: Power:0.2KW Dimension: 1700*1210*740mm Quantity: 1pcs
Low Temperature Dryer
Function：Roaster is used to roast the extruded snack dry product to reduce the moisture percentage Technical Parameter:Heating Type：electric heating(if need gas or diesel or steam heating type .tell us in advance)
Baked Oven
The valve body is well sealed to prevent any heatleakage. thereby reducing energy savings;Equipped with special thermal protective coating toprevent workers from being burned or burned
Cooling Dryer
Power(KW): 2.2kw
Dimension(m): 5000×1500×1900MM
Belt width:1MM
After drying with hot temperature .so we need cooling again before go pack to avoid Secondary get damp
Dimension(m): 5000×1500×1900MM
Belt width:1MM
After drying with hot temperature .so we need cooling again before go pack to avoid Secondary get damp
Samples
The product is produced through the above-mentioned production line. and different sizes of rice can be customized according to the needs of customers.
Company information
Jinan MT machinery & equipment co..ltd is a professional factory. With our many years' research and study. Stainless Steel Automatic Nutritional Fortified Artificial Rice Processing Plant techniques have been widely used in many fields.MT machinery mainly engaged in product category has a bit of glue type. sandwich type fried pellet production line. breakfast cereals.corn chips) food production line. strengthen nutrition rice. golden rice production line. twin screw extruder. core filled snacks processing line. pet food production line. Corn Snacks Food Processing Line . pasta food production.
Certifications
We can support the electronic edition certificates for export if you need. or you can see the original documents in our factory.We can ensure the truth form our government.
Our Service
1. Pre-sale services:
Act as a good adviser and assistant of clients. enable them to get rich and generous returns on their investments.
Select equipment model;
Design and manufacture products
Act as a good adviser and assistant of clients. enable them to get rich and generous returns on their investments.
Select equipment model;
Design and manufacture products
2. Services during the sale:
Respect clients. devote ourselves to improving the total value of clients.
Pre-check and accept products ahead of delivery;
Help clients to draft solving plans.
Respect clients. devote ourselves to improving the total value of clients.
Pre-check and accept products ahead of delivery;
Help clients to draft solving plans.
3. After-sale services:
Provide considerate services to minimize clients' worries.
Assist clients to prepare for the first construction scheme;
Install and debug the equipment;
Provide technical exchanging.
Provide considerate services to minimize clients' worries.
Assist clients to prepare for the first construction scheme;
Install and debug the equipment;
Provide technical exchanging.
Packing & Delivery
Packaging | ||
Size | according to exactly machine type | |
Weight | according to exactly machine type | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries.the wooden box will be fumigated.If container is too tigher.we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | according to exactly machine type | |
Weight | according to exactly machine type | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries.the wooden box will be fumigated.If container is too tigher.we will use pe film for packing or pack it according to customers special request. | |
FAQ
1. How much area the whole production line needs?
A: The best way is telling us your workshop area. then we will draw a draft for you to ensure the rational use of your space.
2. If the power supply is not 3ph 380V 50HZ. could you offer the suitable machine?
A: Yes. we can offer the suitable machine according to your power supply. for example 3ph 380V 60HZ. 3ph 415V 60 HZ. 3ph 220V 60HZ and so on.
3. Do you supply packing machine?
A: We have long-term cooperation packing machine supplier. we will help to contact them also give best price
A: The best way is telling us your workshop area. then we will draw a draft for you to ensure the rational use of your space.
2. If the power supply is not 3ph 380V 50HZ. could you offer the suitable machine?
A: Yes. we can offer the suitable machine according to your power supply. for example 3ph 380V 60HZ. 3ph 415V 60 HZ. 3ph 220V 60HZ and so on.
3. Do you supply packing machine?
A: We have long-term cooperation packing machine supplier. we will help to contact them also give best price
