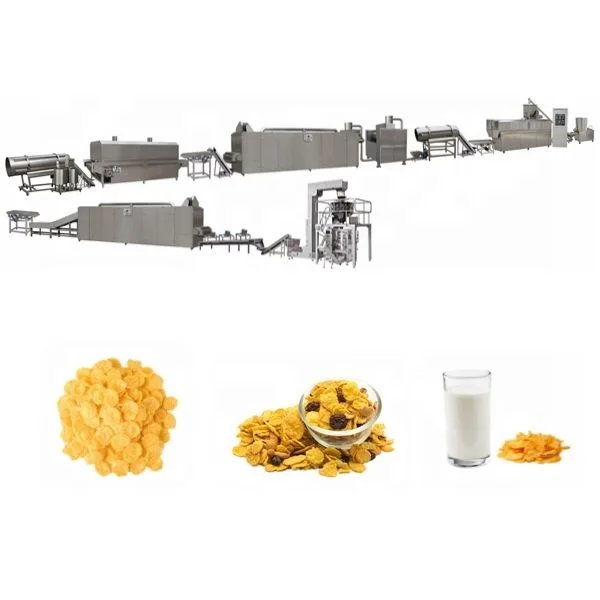

Manufacturing industrial breakfast cereal small maize corn flakes making machine
Product Description
Formation of Manufacturing industrial breakfast cereal small maize corn flakes making machine:
1 Mixer:There are 3 machine model numbers to choose from base on the production capacity.
2 Conveyor:To convey raw materials to the extruder machine
3 Extruder machine: To choose DSE model extruders base on the production capacity requirement from 100kg per hour to 3ton per hour. The raw material include corn powder. cereal powder. soybean powder. shrimp powder and so on. Shape of the pellet depends on the moulds.
4 Hoister: Convey cheetos to the dryer. the height of the hoister depends on the dryer.
5 Multilayer dryer:Electric dryer. controlled by control box. temperature range 0-200ºC.Inside is stainless steel double layer mesh net. Drying time is adjustable according to speed. We have dryers of 3 layer 5 meter. 5 layer 5 meter. 5 layer 7 meter. 5 layer 8 meter. 7 layer 8 meter. and 5 layer 11 meter steam dryer.
6 Sifter:To remove scrap
7 Flavoring line: To spray oil and phagostimulant. the equipment are: single roller. double roller. round roller. eightangle roller. Varies depends on the different production line setting. to spray oil to the surface of the product and make it even.
8 Cooling conveyor: To lower the product temperature in order to pack it easily.
9 Sifter: To remove the wasted material and ensure quality. meanwhile to ensure the reuse of materials.
10 Packing machine: Manual and automatic packing machine.
1 Mixer:There are 3 machine model numbers to choose from base on the production capacity.
2 Conveyor:To convey raw materials to the extruder machine
3 Extruder machine: To choose DSE model extruders base on the production capacity requirement from 100kg per hour to 3ton per hour. The raw material include corn powder. cereal powder. soybean powder. shrimp powder and so on. Shape of the pellet depends on the moulds.
4 Hoister: Convey cheetos to the dryer. the height of the hoister depends on the dryer.
5 Multilayer dryer:Electric dryer. controlled by control box. temperature range 0-200ºC.Inside is stainless steel double layer mesh net. Drying time is adjustable according to speed. We have dryers of 3 layer 5 meter. 5 layer 5 meter. 5 layer 7 meter. 5 layer 8 meter. 7 layer 8 meter. and 5 layer 11 meter steam dryer.
6 Sifter:To remove scrap
7 Flavoring line: To spray oil and phagostimulant. the equipment are: single roller. double roller. round roller. eightangle roller. Varies depends on the different production line setting. to spray oil to the surface of the product and make it even.
8 Cooling conveyor: To lower the product temperature in order to pack it easily.
9 Sifter: To remove the wasted material and ensure quality. meanwhile to ensure the reuse of materials.
10 Packing machine: Manual and automatic packing machine.
Automatic Corn flakes/Breakfast cereals machine/Extruder/Processing Line can take corn. rice. wheat. oat. rye and other grains as materials to produce extruded snacks. with crispy taste and lively shape. Inflating food machine is designed according to market demand.We can get different shapes: round.triangle. square. stars. flower. etc.
1. The screw is made of alloy (38CrMoAL) by nitriding process. high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw. when roasting or replacing of materials.
2. Radiator is increased on driving part for forced cooling effect. and it ensures extruder operate safely
3. SIEMENS(China) Motor
4. It adopts speed adjusted converter on feeding system. extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
5. Adopted the Delta inverters. ensure the extruder better running.
6. The gearbox has automatic lubrication function. with extends gear life.
7. Cutting knife fixed in the die head seat. rotary cutting by V-belt drive.
Technical Parameter Fully automatic cornflakes making mini kellogs corn flakes machine:
1. The screw is made of alloy (38CrMoAL) by nitriding process. high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw. when roasting or replacing of materials.
2. Radiator is increased on driving part for forced cooling effect. and it ensures extruder operate safely
3. SIEMENS(China) Motor
4. It adopts speed adjusted converter on feeding system. extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
5. Adopted the Delta inverters. ensure the extruder better running.
6. The gearbox has automatic lubrication function. with extends gear life.
7. Cutting knife fixed in the die head seat. rotary cutting by V-belt drive.
Technical Parameter Fully automatic cornflakes making mini kellogs corn flakes machine:
Model | Installed power | Real power | Output | Dimension |
MT65 | 70kw | 40kw | 100-150kg/h | 20000x1200x2200mm |
MT70 | 100kw | 70kw | 200-240kg/h | 25000x1500x2200mm |
MT85 | 200kw | 150kw | 300-400kg/h | 30000x3500x4300mm |
Parts:If you buy our machine. we will prepare some free accessories and toolboxes.
Product Details
Mixer
Output:10-30kg/load Power:4kw Tank Size: φ600 x500mm Dimention:1000*800*1200mm
Flour Mixer is used to mix the raw material. like corn flour . rice flour. fish bone flour with liquid and other additives.
Stainless steel structure. the parts in contacting with the raw material or products. cover small area. easy cleaning and operate stably.
Flour Mixer is used to mix the raw material. like corn flour . rice flour. fish bone flour with liquid and other additives.
Stainless steel structure. the parts in contacting with the raw material or products. cover small area. easy cleaning and operate stably.
Screw conveyor
Driving Power: 0.75kw
Dimension: 2700×500×2400mm
Screw Conveyor is used to convey the materials to the feeder of the extruder.
Stainless steel structure. especially the parts in contacting with the raw material or products; The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking. dust pollution; Equipped with vibrating sifter to feed the materials stably and evenly; Easy cleaning and operation; run stably.
Stainless steel structure. especially the parts in contacting with the raw material or products; The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking. dust pollution; Equipped with vibrating sifter to feed the materials stably and evenly; Easy cleaning and operation; run stably.
Double Screw Extruder Machine
MT-65Double Screw Extruder serves to gelatinize flours and starches continuously and automatically.After dosing. the materials are worked by two co-rotating screws composed by sectional modules for the following functions: forward and backward transport. mixing. de-gassing. cooking and forming.
Corn flakes press machine
Material:- Stainless SteelFunction:- Pressing Extruded pellets into flakes Separate Controller Box1.it with big roller to press 2.it with cooling system 3.it can adjust the roller distance to adjust the flakes thicknessPower:16.12 kwSize: 1550*1300*2000mm. Roller:510* 310*1050mm
High-temperature Oven
Technical Parameter:
Size:4.5*1.4*1.8m
Power:3.75kw
Function: this high temperature oven is used to baking the corn flakes .this oven we use gas for baking .and there are both side baking system .can make the corn flakes more crisp.
Sugar Spraying System
Technical Parameter:
Total Power: 28.75KW
Dimension: 4000×1900×1880mm
Roller Size: about Ø600 x 2700mm
Function: This machine consists of conveyor. melting tank and temperature keeping roller. and it is used to spray sugar on the surface of the corn flakes.Products Show
Corn flakes being one of most nutritious foods and is consumed as breakfast food not only in China but-elsewhere in the world. Basically. it is prepared from maize; this is the main raw material. Flavours. like sugar or salt are also added. Maize. the main raw material. is itself a corn grain. Corn flakes have very good taste. Though several other breakfast cereals are also available in the market but they are still to gain popularity.
Company information
Our company(MT Machinery Co.. Ltd.'s )has good experience of the industry development. We have well-experienced managers.outstanding engineers as well as well trained techincal workers.By constant technical exchange with well_known firms of the same line in the world and also by introduction of advanced technique and experience into our company. we have established a strong technical guarantee system. Our company is a manufacturer of puffed extruder and food machinery.
Our products are sold very well throughout China and are also introduced to Southeast Asia. East Europe. Africa and other regions.Our market share is increasing each year.
Our products are sold very well throughout China and are also introduced to Southeast Asia. East Europe. Africa and other regions.Our market share is increasing each year.
We have a lot of customer good feedback.Customers can come to inspect our factory and test the machine. If it is not convenient for you to come. we can send you a video of the test machine or live the test machine process.
Our Certifications
We can provide the electronic edition certificates for Jinan MT Machinery extruded Manufacturing industrial breakfast cereal small maize corn flakes making machine if asked. or you can see the original documents in our factory. We can ensure the truth of our certificates.
Packing & Delivery
Packing of Manufacturing industrial breakfast cereal small maize corn flakes making machine : Simple packing stretch film (Based on the customers' need adopt the wooden case or wooden pellets. etc.)
Transportation: According to the contract. our company could in charge for the shipment or you prepaid. We will choose the most timely and safe way transportation.
Transportation: According to the contract. our company could in charge for the shipment or you prepaid. We will choose the most timely and safe way transportation.
