Product Description

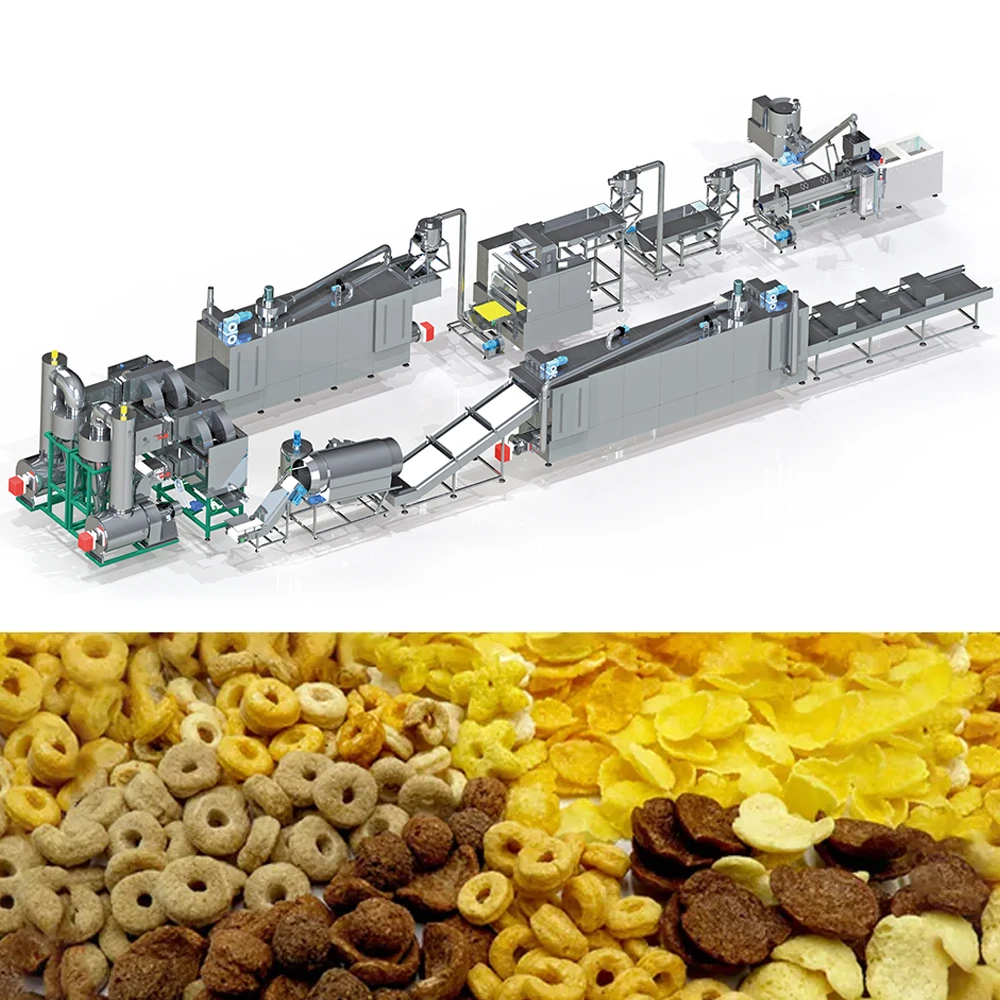

Automatic Instant Breakfast Cereals Snack Food Making Machine
Automatic Instant Breakfast Cereals Snack Food Making Machine use corn and other cereals as main material. through mixing.extruding or boiling. planishing. drying. baking. coating and cooling. to get crispy flakes. Automatic Instant Breakfast Cereals Snack Food Making Machine can be mixed with coffee or milk. or eaten as snacks.The Automatic Instant Breakfast Cereals Snack Food Making Machine is developed and manufactured on the basis of the international advanced extruder technology.which is named corn flakes processing line. Its technology performance and quality can reach international advanced level. The Automatic Instant Breakfast Cereals Snack Food Making Machine consist of mixing. boiling. pressing. drying and inflating. which can be finished in one time. the level of its automation is very high.
Basic material | powder of Corn. rice. wheat. oat. barley. etc. | ||||||
Production procedure | Mixing. Extruding. Flaking. Roasting. High temperature inflating. sugar-coating. Roasting. cooling. packing. | ||||||
Final Products | Natural corn flakes; Coated corn flakes; Variety shapes of breakfast cereals are available. such as ball. tube. stick. ring. fruit loop. star. wheel and flower and heart shape by adjusting the mould in the extruder. | ||||||
Capacity | 100-300kg/hr with different model machines | ||||||
Processing Flow
Our engineer could design the layout drawing according to your factory size. Customization is accepted.
Automatic Instant Breakfast Cereals Snack Food Making Machine .
Mixing–Extruding–Flaking–Drying–Hot Air roasting–Cooling–Packing
Automatic Instant Breakfast Cereals Snack Food Making Machine .
Mixing–Extruding–Flaking–Drying–Hot air roasting–Sugar spraying–Sugar Coating–Drying–Cooling–Packing
Technical Parameter
Model | Installed power | Power consumption | Capacity | Size |
MT70 | 160KW | 120KW | 150-200KG/HR | 41 x 1.5 x 2.2m |
MT85 | 190KW | 140KW | 300-400KG/HR | 43 x 1.5 x3.2m |
MT75 | 210KW | 150KW | 300-500KG/HR | 45 x 1.5 x3.5m |
Sample Picture
Corn flakes with/without sugar.
With some machines of Automatic Instant Breakfast Cereals Snack Food Making Machine various shapes of breakfast cereal snacks can be produced also.
Machine Details
Name | MT-75 Twin Screw Extruder |
Capacity | 200-300kg/hr |
Usage | puffing snacks extrusion |
Working principle | Consists of feeding system. extruding system. cutting system. heating system. gearing system and controlling system. |
Advantage | Automatic lubricating. cooling function. guarantee safe running. Screw is made by special tech. bear grinding. steady and reliable. long service life. |
Name | Corn Flakes Dryer Machine |
Heating Source | Gas. Electric |
Capacity | According to Extruder |
Function | drying puffed snacks after extruding. pre-drying snacks. to avoid sticky problem for next procedure. |
Name | New type Corn flakes flaking machinery |
Capacity | 200-300kg/hr |
Usage | Flaking the puffed corn granules into flakes |
Advantage | PLC control system; Hydraulic system for double rollers; Double Motors for separate roller driving; temperature pipe is controlled evenly by infrared sensor. |
Name | Hot air roasting oven |
Function | after hot air roasting. bubbles will happen on the surface of corn flakes. then crispy corn flakes will be produced. |
Consists | vibrating pan with high temperature spraying tubes. The combustion chamer adopts conciliation burner. Two separate circulating fans and cyclone dust removal device. |
Advantage | sanitary. precise temperature control |
Name | Coating system |
Consists | double tumble for sugar melting. elevator. coating drum. spraying nozzle. |
Function | melting and spraying sugar onto the surface of natural corn flakes. |
Capacity | According to Extruder. different model will be chosen. |
why choose us
Specializing in R&D. production. sales. application promotion of food engineering projects.With more than 10 years of quality. expertise and professionalism on puffed snacks machine industry. we have gained good reputation on market.
We offer one-turnkey solution project for customers. Machine customized is accepted according to customer's requirements. With high quality machines . cost-effective price and good after-sale service. our machines have been popular on market. welcome you to visit us before ordering.
Until now. our machines have been exported to many countries. which gains good reputation from all over the world.
Packing&Delivery
Plastic bubble film on the surface of machines. then wooden case for the spare parts of all processing line based on customer's requirements.
We can supply fumigation package and certificate.
Special packing requirement is available.
FAQ
1. Are you manufacturer or trader?
A: We are professional manufacturer for more than 16 years experience. with professional engineering and after-sales team.
2. What service you supply?
A: We supply 7*24h service Pre-sale. in-sale and after-sale. ODM and OEM service are also available.
3. Do you supply recipe to buyers?
A: Yes. we will supply all recipe and machine parameter setting to customers.
4. If power supply different from yours. can you supply suitable machines?
A: Yes. motor voltage is customized. we will make it according to your requirements. Most commonly are 415V. 50/60HZ; 440V.50/60HZ and 220V. 60HZ.
5.Besides host extrusion line. what other accessories you can supply?
A: We are able to supply full turkey project. including pre-treatment machines and final packing system. It will complete solutionfrom A to Z.
