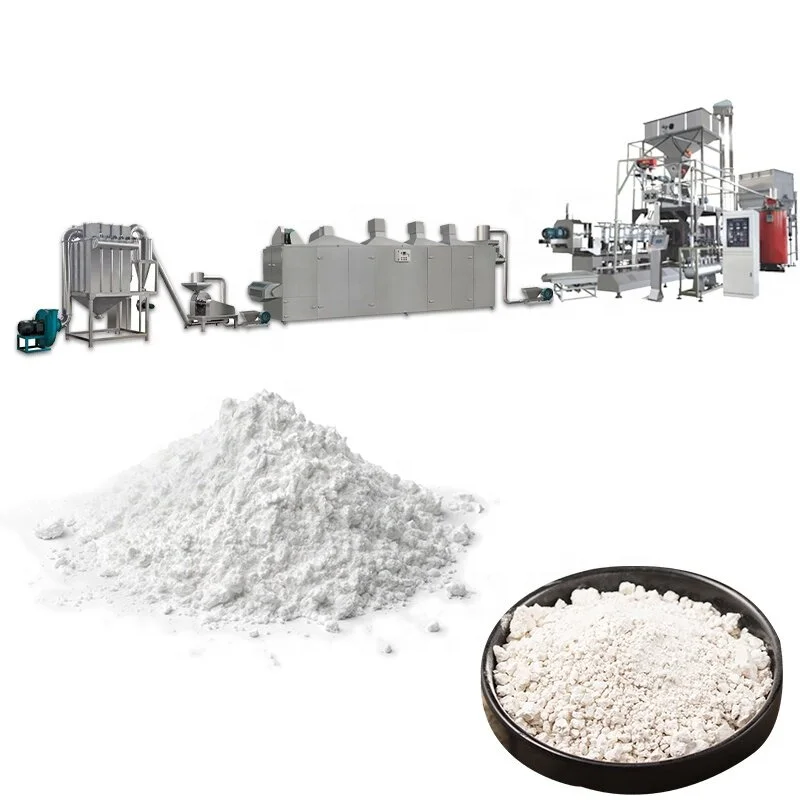

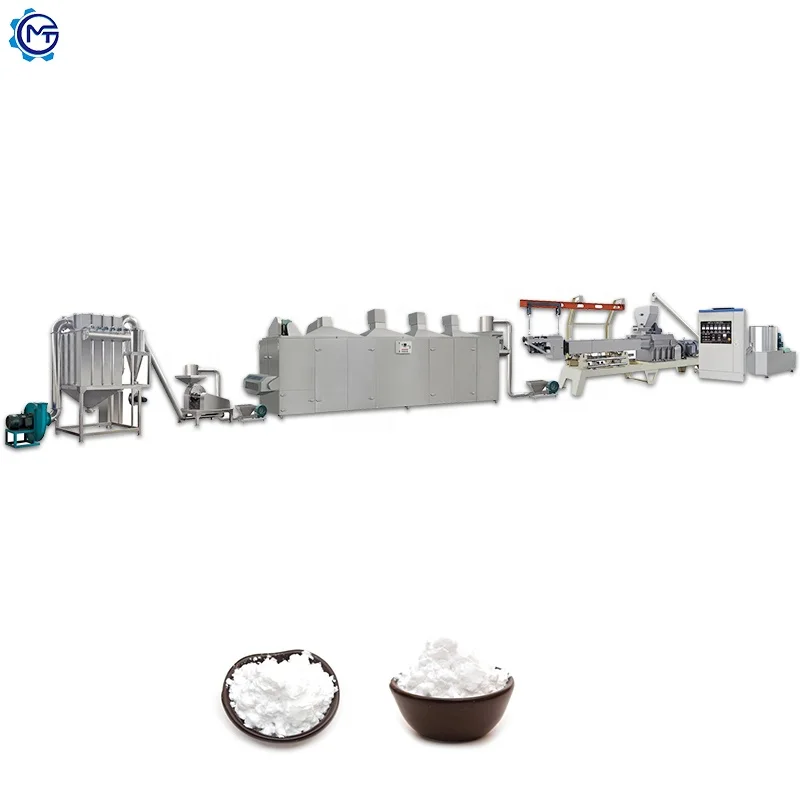

twin screw extruder pre gelatinized modified starch Production line
Product Description
twin screw extruder pre gelatinized modified starch Production line
transparency. etc.). making it more suitable for certain application requirements. This kind of starch that has undergone secondary processing and changed its properties is collectively referred to as modified star
Main characteristics
1.After being processed by a certain method. the original starch changes its original physical or chemical properties to varying degrees. Modified starch is a modified starch. In order to improve the performance of starch and expand its application range. physical. chemical or enzymatic treatment is used to introduce new functional groups on starch molecules or change the size of starch molecules and the properties of starch granules. thereby changing the natural characteristics of starch (such as gelatinization temperature). . Thermal viscosity and its stability. freeze-thaw stability. gel strength. film-forming properties.
transparency. etc.). making it more suitable for certain application requirements. This kind of starch that has undergone secondary processing and changed its properties is collectively referred to as modified star
Model | Installed Power | Power Consumption | Output | Size |
MT65 | 84KW | 59KW | 100-150KG/H | 41000*1500*2200MM |
MT70 | 160KW | 120KW | 150-200KG/H | 41000*1500*2200MM |
MT70C | 190KW | 140KW | 200-250KG/H | 41000*1500*3200MM |
MT75 | 200KW | 145KW | 250-300KG/H | 45000*1500*3500MM |
Product Details
Mixer flour
Function:Used for mixing raw materials Make water and powder raw materials. additives. etc. stir evenly.
Technical Parameter:
Power: 4kw 7.5kw 15kw
Power: 4kw 7.5kw 15kw
Capacity: 20-30kg/time 70-80kg/time 170-180kg/time
Dimension: 1000x900x1300mm 1300*1200*1500mm
1500*1400*1600mm
Voltage: 380V 50HZ Three Phase Standard Stainless steel is: 201 S.S. 304 S.S.
Dimension: 1000x900x1300mm 1300*1200*1500mm
1500*1400*1600mm
Voltage: 380V 50HZ Three Phase Standard Stainless steel is: 201 S.S. 304 S.S.

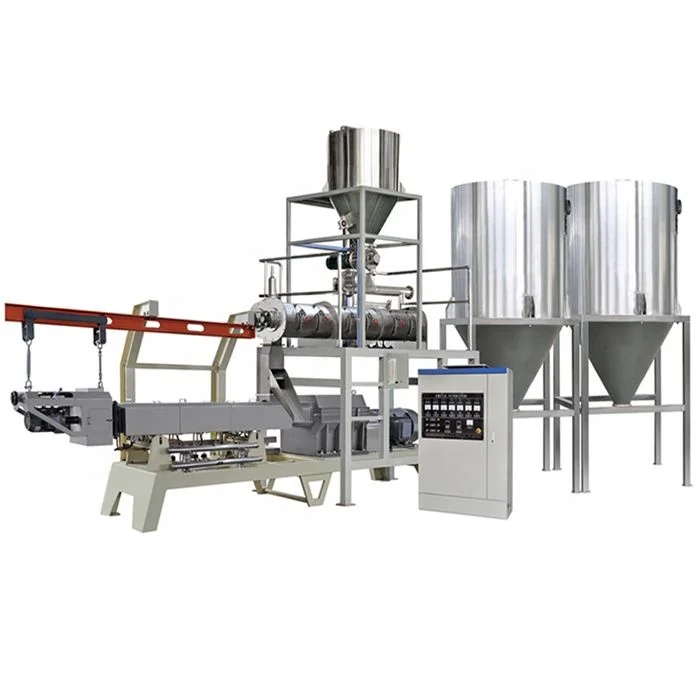

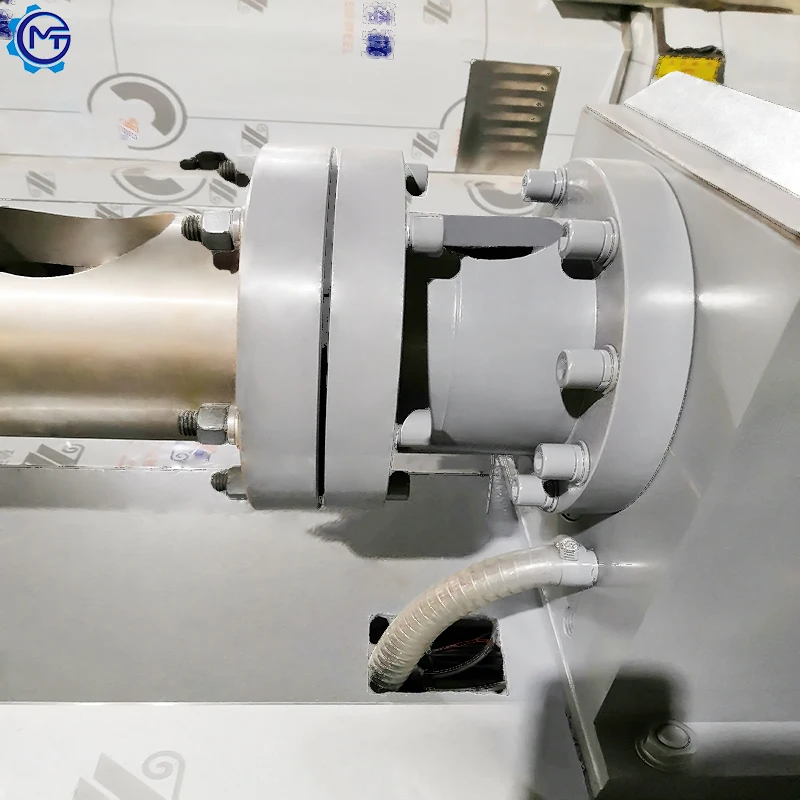

Double-screw extruder
Twin-screw main engine structure: feeding hopper. control cabinet main motor. feeding motor. oil pump. feeding frequency conversion. spindle frequency conversion. reducer. distribution box. shelf. cable plate. screw. barrel. heating ring. flange. Die Head body. mold. etc.

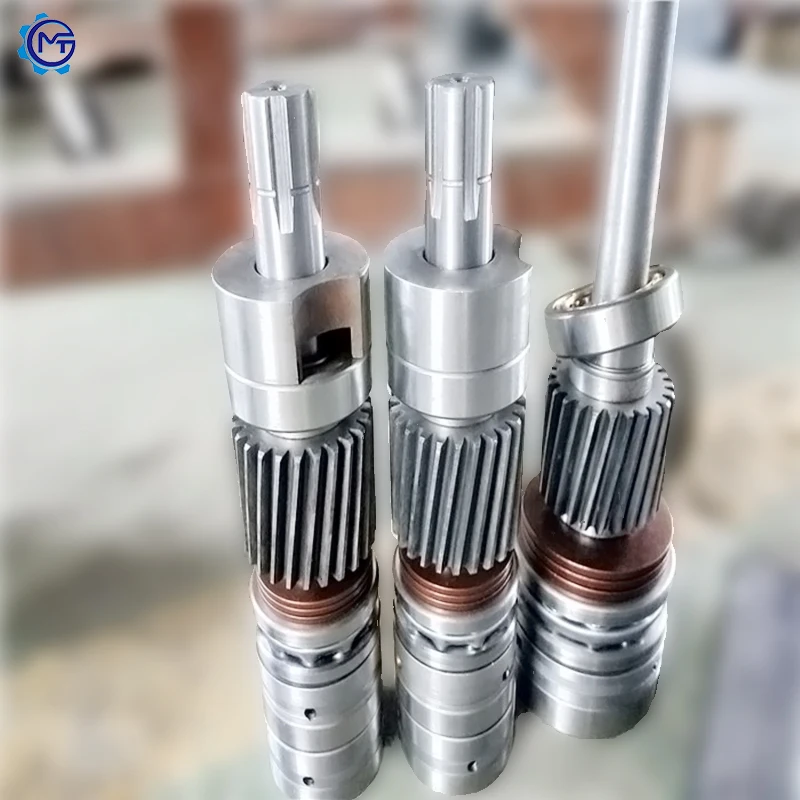

Screw material: 38 screw molybdenum aluminum
Cylinder material: 45# steel
Shelf: carbon steel
Outer sealing plate: stainless steel 201 or 304
Main motor: 22kw. 30kw. 45kw. etc.
Screw length: 1050MM. 1520MM. 1699MM
Screw material: 38 screw molybdenum aluminum
Cylinder material: 45# steel
Shelf: carbon steel
Outer sealing plate: stainless steel 201 or 304
Main motor: 22kw. 30kw. 45kw. etc.
Screw length: 1050MM. 1520MM. 1699MM

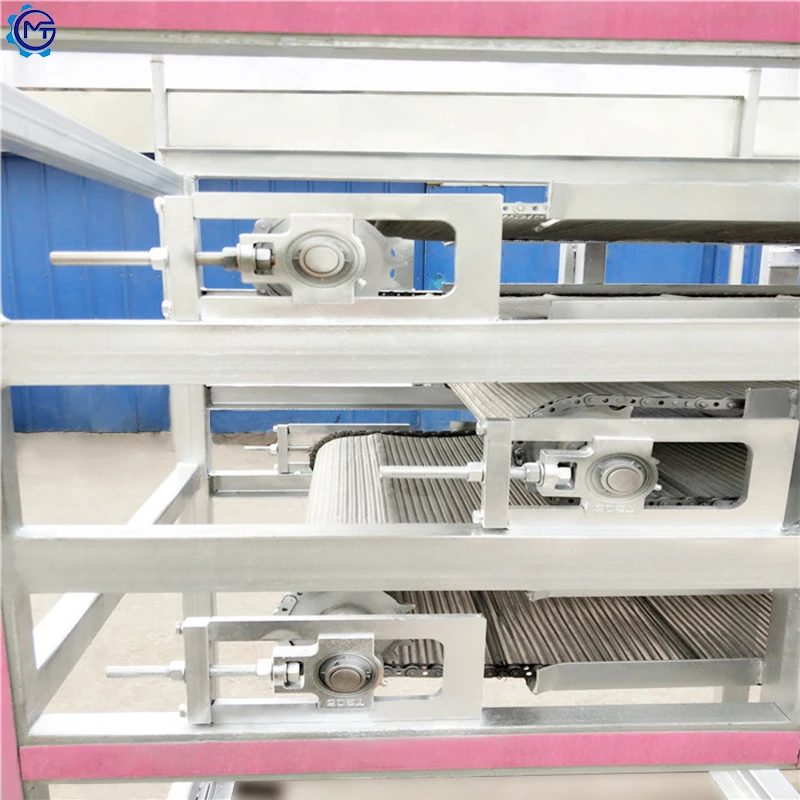

Dryer machine

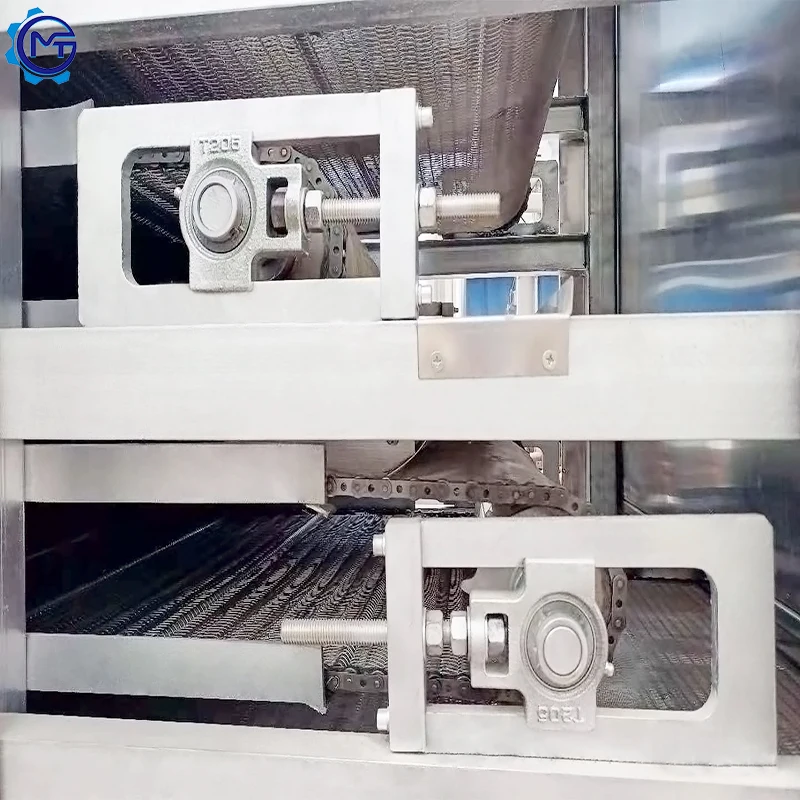

Multi-layer oven: the oven is mostly electric oven. the temperature is between 0-200 degrees and the temperature is adjusted by the control cabinet. the inside is stainless steel double-layer mesh bag. the baking time can be adjusted according to the speed
The oven is divided into fuel oil. gas and electric. customers can choose according to their own country's energy convenience
The oven is divided into 3 layers of 5 meters. 5 layers of 5 meters. 5 layers of 7 meters. 7 layers of 10 meters. and 5 layers of 12 meters. This is determined according to the output of the product requested by the customer and the degree of dryness and wetness required by the product.
The oven is divided into fuel oil. gas and electric. customers can choose according to their own country's energy convenience
The oven is divided into 3 layers of 5 meters. 5 layers of 5 meters. 5 layers of 7 meters. 7 layers of 10 meters. and 5 layers of 12 meters. This is determined according to the output of the product requested by the customer and the degree of dryness and wetness required by the product.

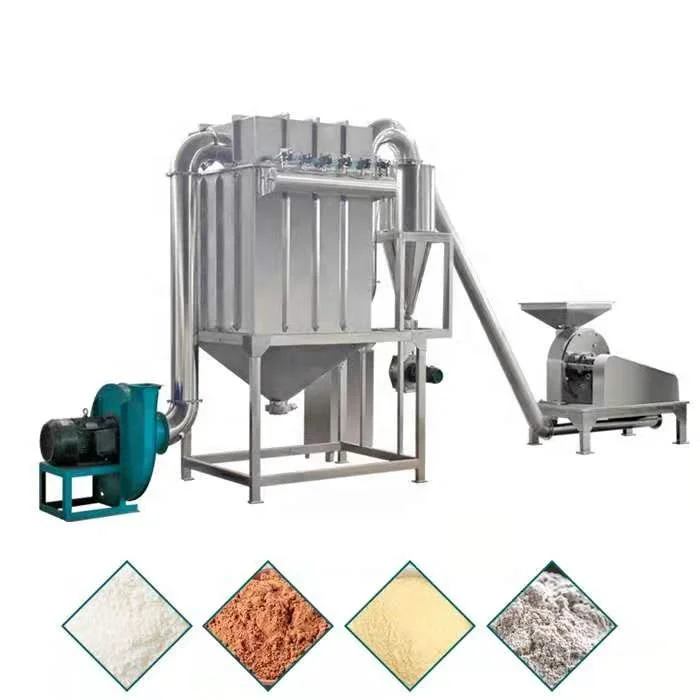

Pulse Grinder
This grinding machine is designed with the parts of main Unit. cyclone discharge. dust collector. control panel. etc.
Main Unit: including Feeding Hopper. Auger Feeder (speed controlled). Rotor (blades and disc). Stator (liner with serrated teeth). Classifier (driven by motor). Frame. etc.
Cyclone Discharge: including a Cyclone. Rotary Valve for discharge. Pipes. etc.
Dust Collector: Including Filter Pockets. Pockets Holders. Filter Case. Pockets Cleaning device. Pipe. Fan. etc..
Related Product
Packing & Delivery
1. Testing Machine before package. 2. Packaging: inside is covered in plastic film. outside is wooden case.3. Shipping: 15-35 working days after receiving deposit.4. The pictures of our packaging logistics for your reference.
Our Services
a. We can keep product design in the same level with internationally advanced technology consistently. b. We have high diathesis staff and excellent processing equipment. and quality control runs through the whole production process from parts stock to the beginning of production. c. We can guarantee customers superior quality machines up to design requirements and perfect working state. d. Our technicians can also provide all kinds of relevant technology to make the food production clean. healthy and safe.e. We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.f. We provide 1 year complete Guarantee and life-time maintenance service.
Company Profile
Our company is Jinan Meiteng mechanical equipment Co.. Ltd.. located in Jinan City. Shandong Province. China. Since 2014. we have been engaged in twin-screw and single screw food expansion machinery enterprises. Our company focuses on R & D. production and sales of various expansion machinery and equipment. Our company has a professional team engaged in this industry for decades. We not only do our best in the research of extrusion technology. but also try our best to continuously explore the food technology. so that our customers can produce market-leading food. We rely on the excellent quality of machinery and equipment. perfect technical service and good reputation. won the trust and support of the majority of buyers at home and abroad. Our products include: puffed food production line equipment. Corn Flake breakfast grain production line equipment. rice production line equipment. modified starch. nutrition powder production line equipment. puffed bread bran equipment. fried food equipment. pet feed equipment. instant noodles production line. etc. Our equipment is exported to many countries (such as South Africa. Indonesia. Malaysia. Uzbekistan. Kazakhstan. India. Myanmar. Zimbabwe. UK. Italy. Brazil. etc.).In order to common development. we Anhui constantly update technology. improve equipment quality. improve technical services to meet the higher needs of customers.
Since 2014. our company has successively participated in the domestic Canton Fair. Shanghai Baking Exhibition. Henan Luohe exhibition. sugar and wine fair. as well as exhibitions in some foreign countries (such as Malaysia. Pakistan. Indonesia. India. Egypt. etc.). Before the exhibition. we will prepare our company's sample books and business cards. and also collect the best-selling samples for new and old customers to choose. At the exhibition. we will also run our machines and show them to new and old customers.
Certificate
We can support the electronic edition certificates for export if you need. or you can see the original documents in our factory. We can ensure the truth form our government.
FAQ
Q: Are you a trade company or a manufacturer?A: we are a manufacturer. welcome to visit our factory and check the machines.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock. we could discuss before contract.Q: Could you supply all the parameters about the machines?A: Yes. we will supply all the parameters. price. layout drawing. factory design etc.Q: What is your terms of payment ?A: 30% T/T in advance . 70% balance before shippment after inspection.Q: How about the after-service?A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.Q:do you supply any formula to buyer?A: yes. we supply formulas to buyer.
